webRTC

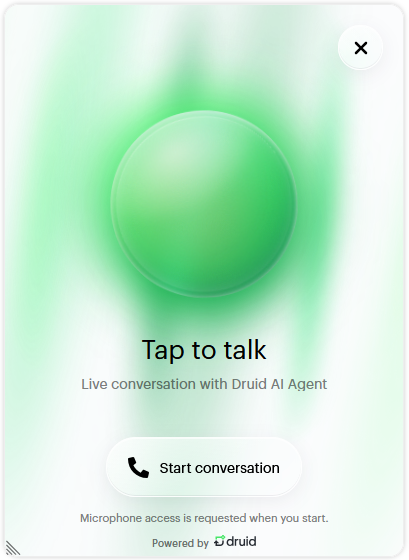

The webRTC channel enables natural, bi-directional voice interactions directly within web pages, allowing users to talk with AI Agents using spoken language.

Unlike client-side voice-assisted chat interactions, which only provide local speech-to-text dictation comparable to a mobile voice keyboard, Druid webRTC provides real-time spoken conversations using the complete Druid voice technology stack. Audio responses are delivered via server-side Text-to-Speech (TTS).

To provide users with Druid’s high-quality voice experience, authors configure the webRTC inside the Druid Portal and deploy the AI Agent using the standard webchat snippet code.

Configure webRTC

To enable and configure voice interactions:

1. In the Druid Portal, navigate to the AI Agent settings.
2. Click the Channels tab.
3. Search for webchat and click on the channel card.

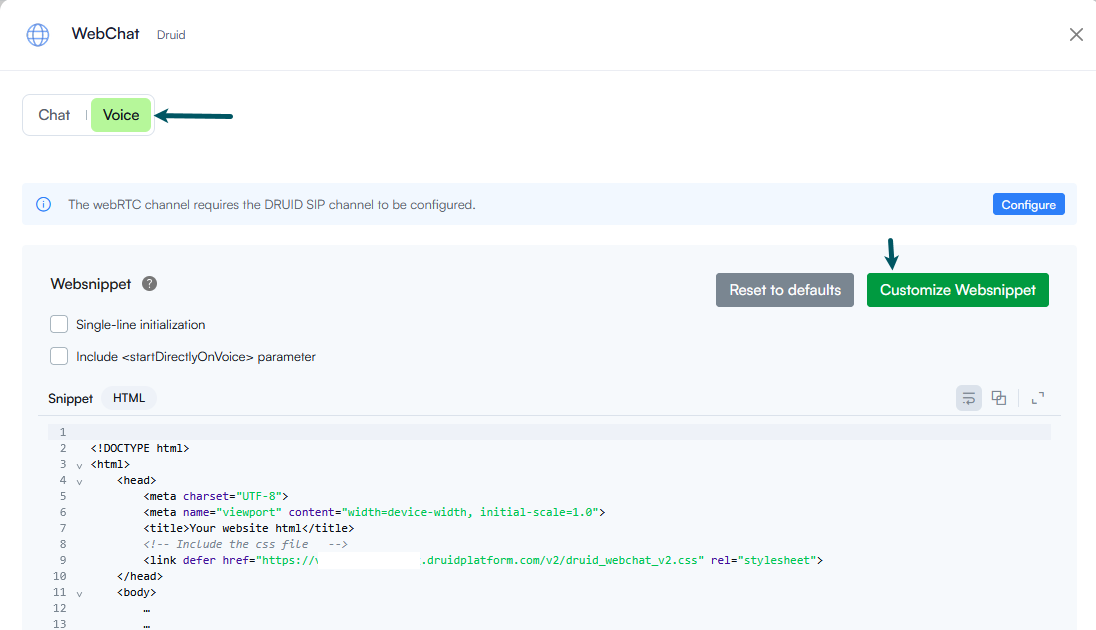

4. In the modal, click the Voice tab, then click on Customize webchat.



The voice customization panel appears.

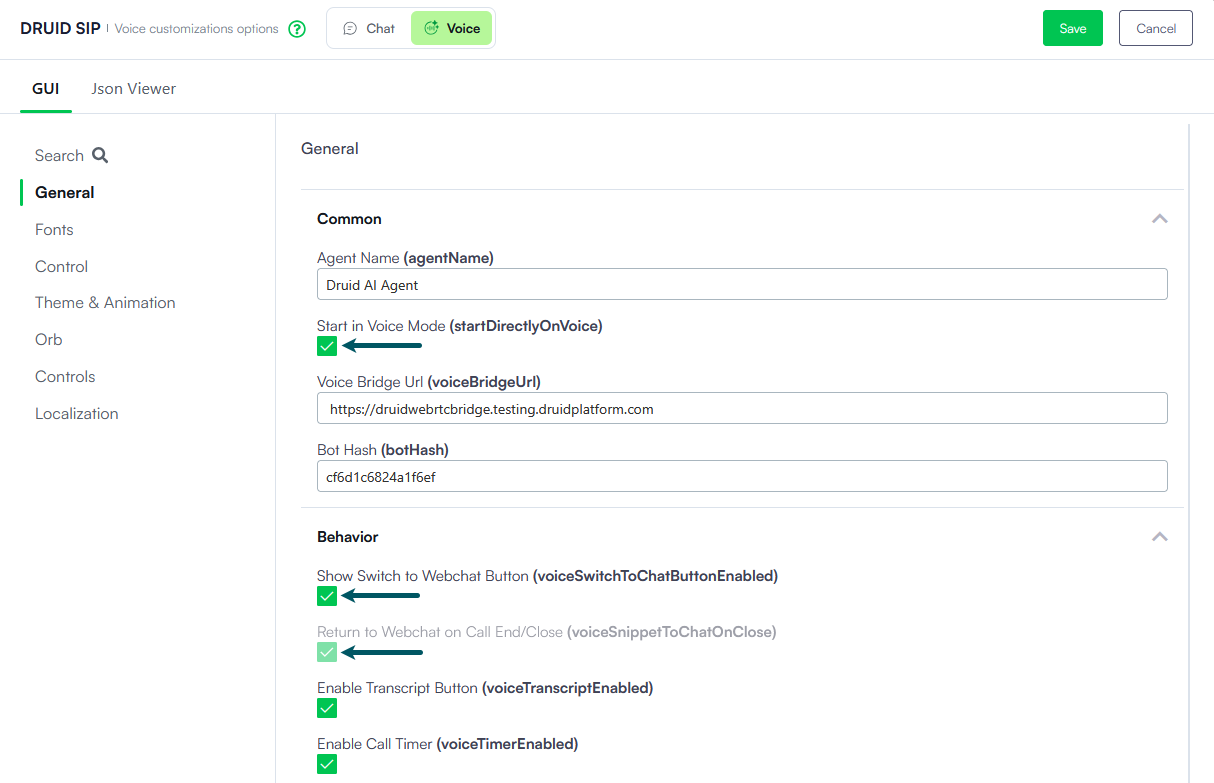

5. In the voice customization panel, customize the styling and behavior parameters for webRTC according to your requirements.
Info: While multiple parameters are available for customization, pay special attention to these settings:

• Start in Voice Mode (useVoiceChat). Enables voice-only deployments. When selected, the AI Agent launches directly in voice mode, disabling initial text typing.
• Show Switch to Webchat Button (voiceSwitchToChatButtonEnabled). Enables hybrid voice and text experiences, allowing users to switch from voice to text messages.
• Return to Webchat on Call End/Close (voiceSnippetToChatOnClose). When selected, closing the voice interface or ending a call automatically returns the user to the standard typing web chat.



6. Save the modal, then save the AI Agent configuration.

webRTC Parameters Reference

When customizing the webRTC channel, the following parameters can be configured across different categories and sub-categories:

General

Sub-category	UI Field Name	Parameter Code Name	Description
Common	Agent Name	agentName	Specifies the display name of the AI Agent during voice conversations.
Common	Start in Voice Mode	useVoiceChat	When enabled, launches the snippet directly in voice interaction mode instead of standard text chat.
Common	Voice Bridge URL	voiceBridgeUrl	Specifies the SIP/Voice bridge endpoint used to connect the client voice session. The URL format is: https://druidwebrtcbridge.<tenant name>.druidplatform.com
Common	Bot Hash	botHash	Unique identifier hash assigned to the AI Agent voice instance. While this will be automatically prefilled in a future release, you currently need to contact Druid Support to obtain your bot hash.
Behavior	Show Switch to Webchat Button	voiceSwitchToChatButtonEnabled	Enables hybrid voice and text experiences, allowing users to switch from voice to text messages. Enabling this setting makes Return to Webchat on Call End/Close non-editable.
Behavior	Return to Webchat on Call End/Close	voiceSnippetToChatOnClose	When enabled, automatically returns the user to the standard typing web chat experience when a voice call ends or the snippet is closed, allowing users to seamlessly switch between voice and text modes.
Behavior	Enable Transcript Button	voiceTranscriptEnabled	Displays a button allowing users to view the live text transcript during a voice call.
Behavior	Enable Call Timer	voiceTimerEnabled	Displays an active call timer during the voice conversation.
Behavior	Microphone Volume (0-1)	voiceMicVolume	Controls the microphone input sensitivity level.
Behavior	Bot Volume (0-1)	voiceBotVolume	Controls the playback volume level for the AI Agent voice.

Fonts

UI Field Name	Parameter Code Name	Description
Font Size Small	fontSizeSmall	Sets the size for small interface text elements (e.g., secondary captions or hints).
Font Size Medium	fontSizeMedium	Sets the base font size for standard interface labels and buttons.
Font Size Large	fontSizeLarge	Sets the font size for primary titles and status captions.

Theme & Animation

Sub-category	UI Field Name	Parameter Code Name	Description
Common	Theme	theme	Defines the overall layout theme for the voice UI.
Common	Tone (surface darkness, 0-100)	tone	Adjusts the surface darkness/luminance level.
Colors	Primary Color	primary	Base primary theme color (HEX code and opacity percentage).
Colors	Secondary Color	secondary	Secondary theme color used for highlights (HEX code and opacity percentage).
Colors	Accent Color	accent	Accent color used across interactive call elements (HEX code and opacity percentage).
Gradient & Animation	Animation	animation	Select the background visual animation style (e.g., aurora).
Gradient & Animation	Gradient Angle (degrees)	angle	Sets the direction angle in degrees for the background gradient.
Gradient & Animation	Secondary Color Stop (0-100)	stop	Defines the position stop percentage for the secondary color gradient.
Gradient & Animation	Intensity (0-100)	intensity	Controls the opacity and vibrancy intensity of the animation.
Gradient & Animation	Ambient Background (0-100)	background	Sets the opacity level for the ambient background layer.
Gradient & Animation	Ambient Spread (0-100)	spread	Defines the spread radius percentage for ambient lighting effects.
Gradient & Animation	Ambient Blur (px)	blur	Sets the blur radius in pixels for ambient visual effects.
Gradient & Animation	Ambient Glow (0-100)	glow	Sets the intensity of the ambient glow effect.

Orb

These are colors for the blob orbital in the voice snippet.

Sub-category	UI Field Name	Parameter Code Name	Description
Colors	Blob Color 1	voiceOrbColor1	Primary color layer and opacity percentage for the orbital sphere.
Colors	Blob Color 2	voiceOrbColor2	Secondary color blend for the orbital sphere.
Colors	Blob Color 3	voiceOrbColor3	Tertiary color blend for the orbital sphere.
Colors	Blob Color 4	voiceOrbColor4	Quaternary color blend for the orbital sphere.
Colors	Blob Color 5	voiceOrbColor5	Quintary color blend for the orbital sphere.

Controls

Sub-category	UI Field Name	Parameter Code Name	Description
Layout	Button Size (px)	controlButtonSize	Sets the diameter size in pixels for control action buttons.
Layout	Buttons Gap (px)	controlButtonsGap	Sets the spacing gap in pixels between control buttons.
Layout	Padding Top and Bottom (px)	controlPaddingTopBottom	Sets top and bottom padding for the controls section.
Layout	Backdrop Blur (px)	controlButtonBackdropBlur	Defines the backdrop blur intensity in pixels applied behind control buttons.
Colors	Background Color	controlButtonBackgroundColor	Default background color for call control buttons.
Colors	Background Color On Hover	controlButtonBackgroundColorOnHover	Button background color when hovered over.
Colors	Icon Color	controlButtonIconColor	Default icon color inside control buttons.
Colors	Border Color	controlButtonBorderColor	Border color for control buttons.
Colors	Active Background Color	controlButtonActiveBackgroundColor	Background color for active/pressed control buttons.
Colors	Active Icon Color	controlButtonActiveIconColor	Icon color for active/pressed control buttons.
Colors	Hangup Pill Text/Icon Color	controlHangupButtonColor	Text and icon color for the hangup action button.
Colors	Hangup Button Background Color	hangupButtonBackgroundColor	Background color for the end call/hangup button.
Colors	Hangup Button Icon Color	hangupButtonIconColor	Icon color for the end call/hangup button.
Icons	Hangup icon	v2_hangup_icon	Custom icon for ending the call. Only .svg file format (svg code) is supported.
Icons	Microphone icon	v2_microphone_icon	Custom icon for active microphone state. Only .svg file format (svg code) is supported.
Icons	Microphone muted icon	v2_microphone_muted_icon	Custom icon for muted microphone state. Only .svg file format (svg code) is supported.
Icons	Show transcript icon	v2_transcript_icon	Custom icon for toggling live transcript view. Only .svg file format (svg code) is supported.
Icons	Show orb icon	v2_orb_icon	Custom icon for toggling orb animation view. Only .svg file format (svg code) is supported.

Localization

JSON structure defining UI captions, labels, and status messages per locale (e.g., en-US).
