ServiceNow

This topic explains how to configure a DRUID REST app and integration tasks for ServiceNow integration. It covers authentication and supported API operations (GET, POST, PATCH).

Authentication with OAuth Credentials

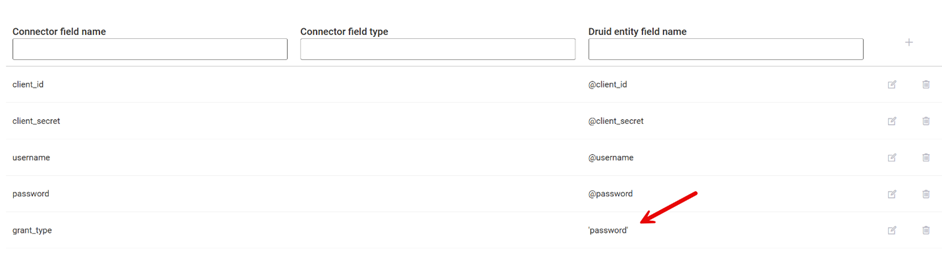

To authenticate with ServiceNow, you'll need the following information:

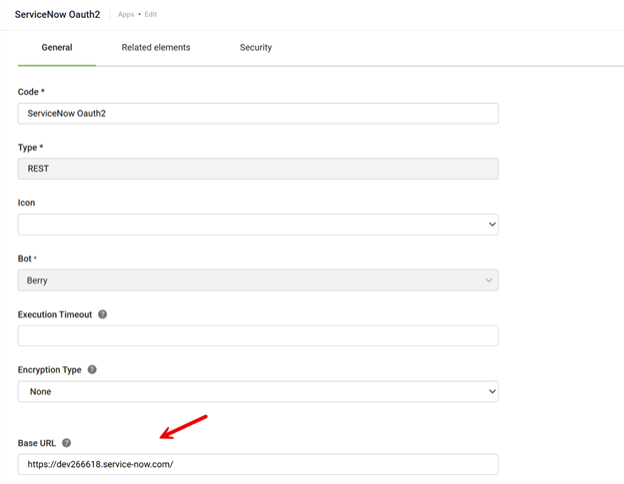

• Base URL: The URL of your ServiceNow instance.
• Client ID: From your ServiceNow OAuth configuration.
• Client Secret: From your ServiceNow OAuth configuration.
• Username: A service account user.
• Password: Password for the service account.
• Grant Type: password

Generate OAuth Credentials

To obtain the Client ID and Client Secret:

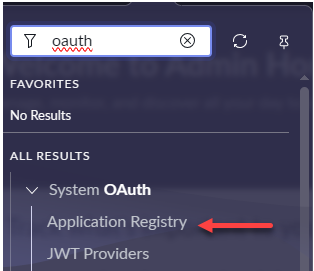

1. In your ServiceNow instance, go to System OAuth > Application Registry.

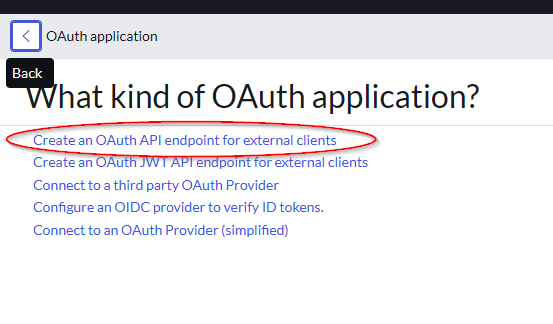

2. Register a new OAuth application.



Use a dedicated service account for DRUID integration. Assign it permissions to:

• Read
• Create
• Update
• Delete incidents
3. Save the generated credentials.

See ServiceNow documentation for detailed instructions.

The following sections provide the required endpoints and parameters for various ServiceNow REST API operations.

Create an Incident

POST {{BaseUrl}}/api/now/table/incident

{
  "caller_id": "",
  "category": "{{category}}",
  "short_description": "{{short_description}}",
  "opened_by": "6816f79cc0a8016401c5a33be04be441",
  "comments": "{{comments}}",
  "cause": "{{email}}",
  "active": "true"
}

Get Incident Information

GET: {{BaseUrl}}/api/now/table/incident?sys_class_name={sys_class_name}&sysparam_view={sysparam_view}&sysparam_limit={sysparam_limit}&number={number}&sysparm_display_value=true

Get Incidents by User

GET: {{BaseUrl}}/api/now/table/incident?sys_class_name={sys_class_name}&sysparam_view={sysparam_view}&sysparam_limit={sysparam_limit}&sysparm_display_value=true

Update an Incident

PATCH {{BaseUrl}}/api/now/table/incident/{sys_id}

{
  "description": "test",
  "close_code": "Resolved by caller",
  "close_notes": "Closed"
}
