Druid Connector Host High Availability

DRUID allows you to deploy the Druid Connector Host in a high availability (HA) scenario, enabling load balancing by running multiple Connector Host instances in parallel for your tenant. If you are using multiple Connector Host instances, they automatically sync their configuration, operate concurrently, and can independently handle specific requests.

For this setup, all Connector Host instances must connect to the same shared Conversation History Database and shared drive for file storage on your network. These components must be accessible to all virtual machines (VMs) where the Connector Hosts are installed.

NOTE: DRUID provides high availability only for the Connector Host instances. It does not offer high availability for the shared Conversation History Database or the shared drive for file storage. To ensure HA for these components, you can implement specific non-DRUID mechanisms.

To install Connector Host in the high availability scenario (on multiple machines), follow these steps:

Step 1. Install the connector Host on premise on multiple machines

Install the Druid Connector Host on multiple machines following the installation procedure.

IMPORTANT! Do use the same values for the parameters, i.e. the file dev.env (prod.env for prod environment) will have the same content on all machines.

Step 2. Configure a shared storage in your network

Configure a shared storage in your network, {{SHARED- FOLDER}} which should be read and write available for all Linux machines.

Step 3. Configure the high availability setting

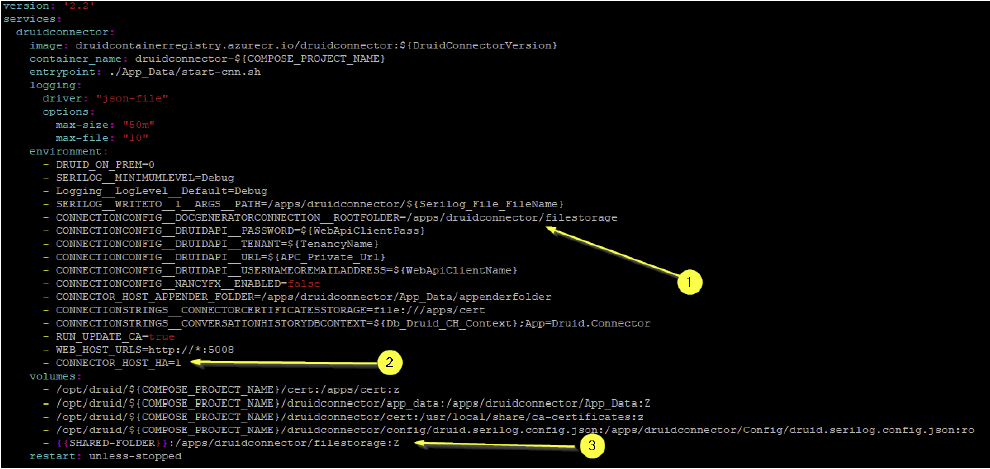

On each Linux machine, edit the file /opt/Druid/dc.files/docker-compose.yml as follows:

  1. Modify line - CONNECTIONCONFIG  DOCGENERATORCONNECTION  ROOTFOLDER=/apps/Druidconnector/App_Data/filestorage and change to - CONNECTIONCONFIG  DOCGENERATORCONNECTION  ROOTFOLDER=/apps/Druidconnector/filestorage.
  2. In section /services/Druidconnector/environment, add the line - CONNECTOR_HOST_HA=1.
  3. In section /services/Druidconnector/volumes, add the line - {{SHARED-FOLDER}}:/apps/Druidconnector/filestorage:Z.

    4. NOTE: Replace {{SHARED-FOLDER}} with its actual value.
  4. Recreate container:

    5. Copy

    On DEV environments

    cd /opt/Druid/dc.files
    docker-compose --env-file dev.env
    down docker-compose --env-file dev.env up -d

    Copy

    On PROD environments

    cd /opt/Druid/dc.files
    docker-compose --env-file prod.env down
    docker-compose --env-file prod.env up -d
