Putting Users in the "Requires Password Reset" State in Active Directory

This section describes how to add and configure an AD integration task to put users in the state "requires password reset" in Active Directory. Upon the next login, users will be prompted to set a new password.

Note: This feature is available in DRUID 5.29 and higher and requires DRUID Connector Host upgrade.

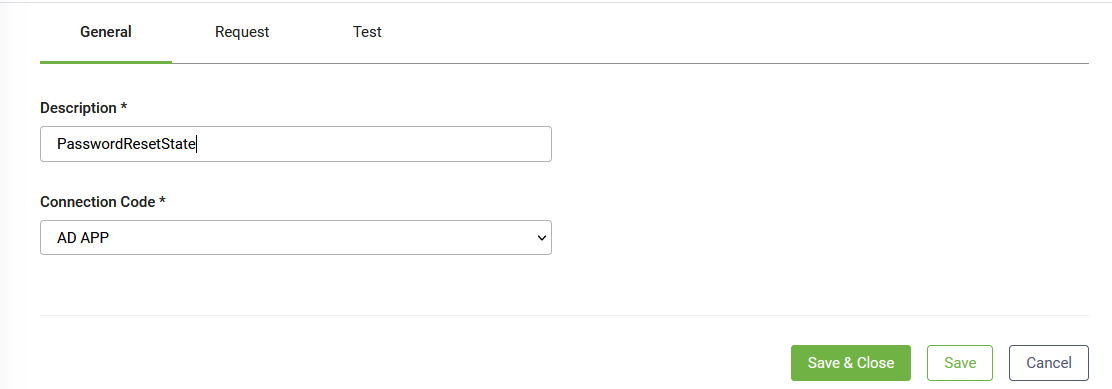

1. Set the task general parameters

At the top-right corner of the Edit Connector Action page, ConnectorSteps tab, click on the Create Task button and select Active Directory > Reset Password. The Edit Connector Task page appears by default on the General tab.

Set the general parameters provided in the table below.

Parameter	Description
Description	Provide a brief relevant description of the task.
ConnectionCode	Select the AD app.

Save the task general settings.

2. Set the request

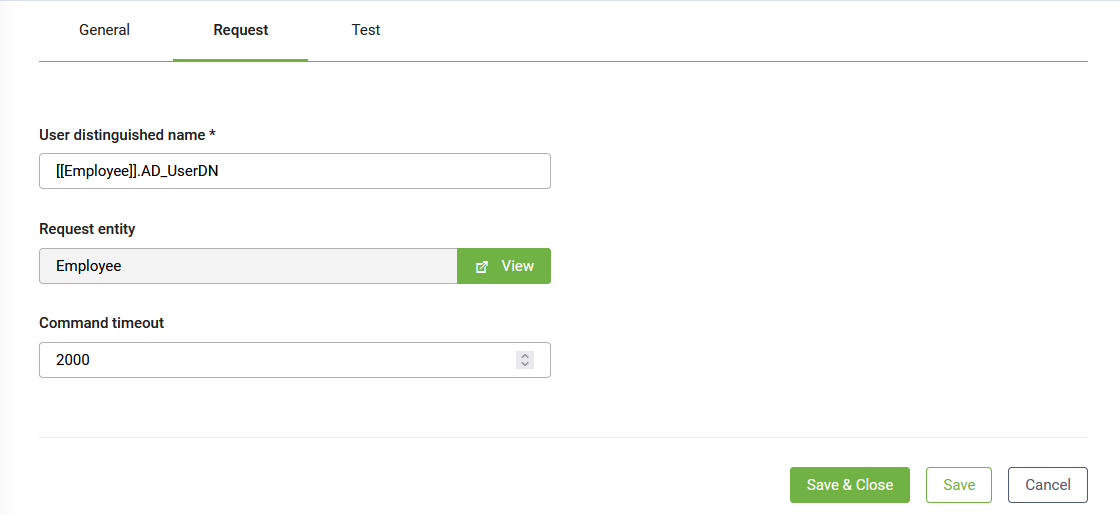

Click the Request tab and set the request details.

Parameter	Description
User Distinguished Name	Enter the name of the field that stores the LDAP distinguished name of the user to unlock. This field is mandatory. To properly fill in this field, type “[[“, choose your entity, type “.” after the closing brackets ]] and choose the correct entity field from the new drop-down that appears. Example: [[Employee]].AD_UserDN
Request entity	Read-only. Druid uses it to pass input data to the LDAP calls. This field is automatically fill-in with the request entity specified on the Connector Action set. You refer this entity in all the Fields mapping on the Request tab.
CommandTimeout	Set the time in seconds to wait for the LDAP statement to execute. The default is 2000 milliseconds.

Parameter

Description

User Distinguished Name

Enter the name of the field that stores the LDAP distinguished name of the user to unlock. This field is mandatory.

To properly fill in this field, type “[[“, choose your entity, type “.” after the closing brackets ]] and choose the correct entity field from the new drop-down that appears.

Example: [[Employee]].AD_UserDN

Request entity

Read-only. Druid uses it to pass input data to the LDAP calls. This field is automatically fill-in with the request entity specified on the Connector Action set.

You refer this entity in all the Fields mapping on the Request tab.

CommandTimeout

Set the time in seconds to wait for the LDAP statement to execute. The default is 2000 milliseconds.

Click the Save button. As the request is not expected an answer in Druid, the Response tab is not visible in Druid.

3. Test the request

The Druid ChatBot Platform provides the possibility to test the configurations of the AD Task directly from authoring portal (without the need to place your newly created connector action in a flow and test it within a chatbot conversation).

To test a request, click the Test tab. Click the RequestEntity tab. The JSON field contains by default the name of the entity used by the chatbot to send data to the AD app via the current action.

Copy

Example

{
    "$entityTypeName$": "Employee"
}

In order to test the task, you need to create an initial context, used for request (similar to when the task is called from a conversation, where Request Entity has data from conversational context). To do that, you’ll need to provide the request entity data in JSON format. Create the JSON object for a Druid entity in the following way:

Mention the entity name in "$entityTypeName$" property. E.g., "$entityTypeName$":"Employee".
Add a new property for each field in Druid entity. E.g., "EmployeeId":1234 or "FirstName":"John".

Copy

Example - Druid entity in Jobject format

{
    "$entityTypeName$": "Employee",
    "EmployeeId":1234,
    "JobTitle":"LineManager",
    "EmploymentDate":"2020-01-20"
}

In case you need to map data from the [[ChatUser]] entity, as well, click the ChatUser tab and in the JSON field, replace the values of the chat user details:

Copy

Mapping data from [[ChatUser]]

{
    "$entityTypeName$": "ChatUser",
    "Id": "00000000-0000-0000-0000-000000000000",
    "TenantId": 0,
    "TenantUserId": "00000000-0000-0000-0000-000000000000",
    "IsAnonymous": false,
    "IsAuthenticated": false,
    "BotId": "00000000-0000-0000-0000-000000000000",
    "IsConnectedAsHelpdeskAgent": false,
    "IsAwaitingHelpdeskAgent": false,
    "IsConnectedToHelpdeskAgent": false,
    "ConversationStatus": "None",
    "WasAuthenticated": false,
    "ClientTimeStamp": "0001-01-01T00:00:00Z",
    "ServerTimeStamp": "0001-01-01T00:00:00Z",
    "IsCommandChannel": false
}

At the top-right corner of the page click the Test button. In the lower part the Test tab you will see the result of the test.

If the test is successful, you will see data in ResponseEntity tab (here you can see how would the response entity look like when the connector task will be called within a conversation).

You can also check the Request Task tab, to see the LDAP statement (with values) for this particular test.

If the test fails, you can navigate through the Test Result tabs to troubleshoot the misconfiguration.
