Alert Flows

Alert Flows enable you to trigger dialogues (flows) for specific users or conversations on a scheduled basis. Unlike external events sent to DRUID endpoints, alert flows are initiated directly by the DRUID conversational engine.

Create an Alert flow

To create an alert flow, follow these steps:

1. Add a new flow.
2. Select the flow type Alert and click Save.



3. Assign security roles (Admin and User) and click Save.



4. Add the necessary steps to the flow.

Configure Alert flow scheduling

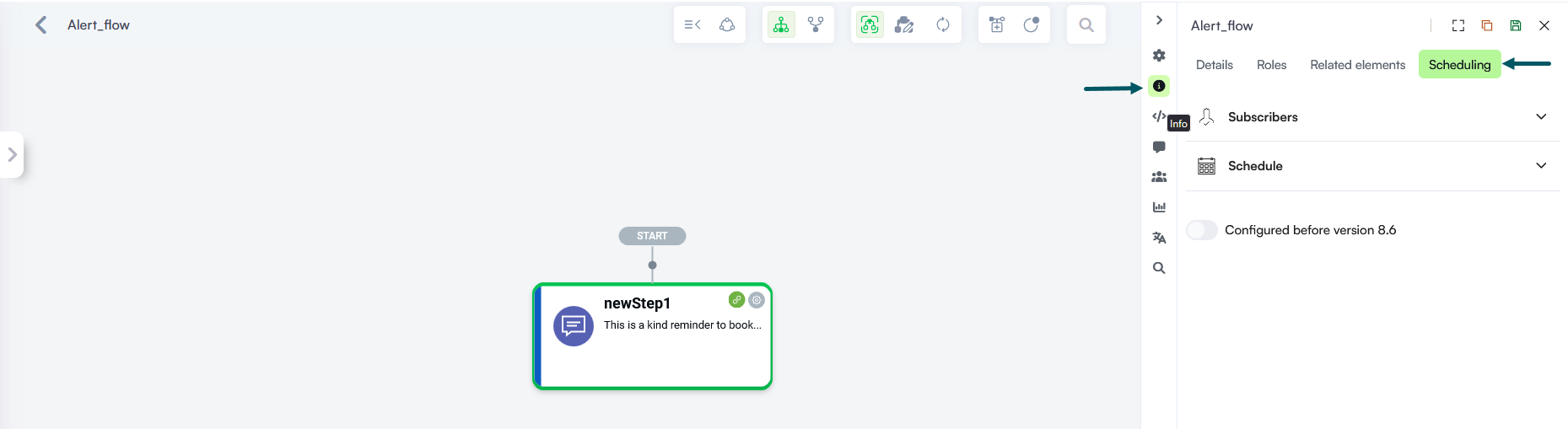

Navigate to the Scheduling tab to set the recipients and timing for the alert.

The way you configure the alert scheduling depends on the type of alert you want to send:

• Send alerts to specific, static users without evaluating an external data source. Examples include:
  • Sending a "Good Morning" message to specific employees.
  • Triggering automation at specific times for specific users.
• Send alerts to users identified through an external data source, dynamically filtered based on conditions. E.g., sending a "Happy Birthday" message to employees whose birthdays are today.

Sending alerts to static users

To send alerts to statics users, follow these steps:

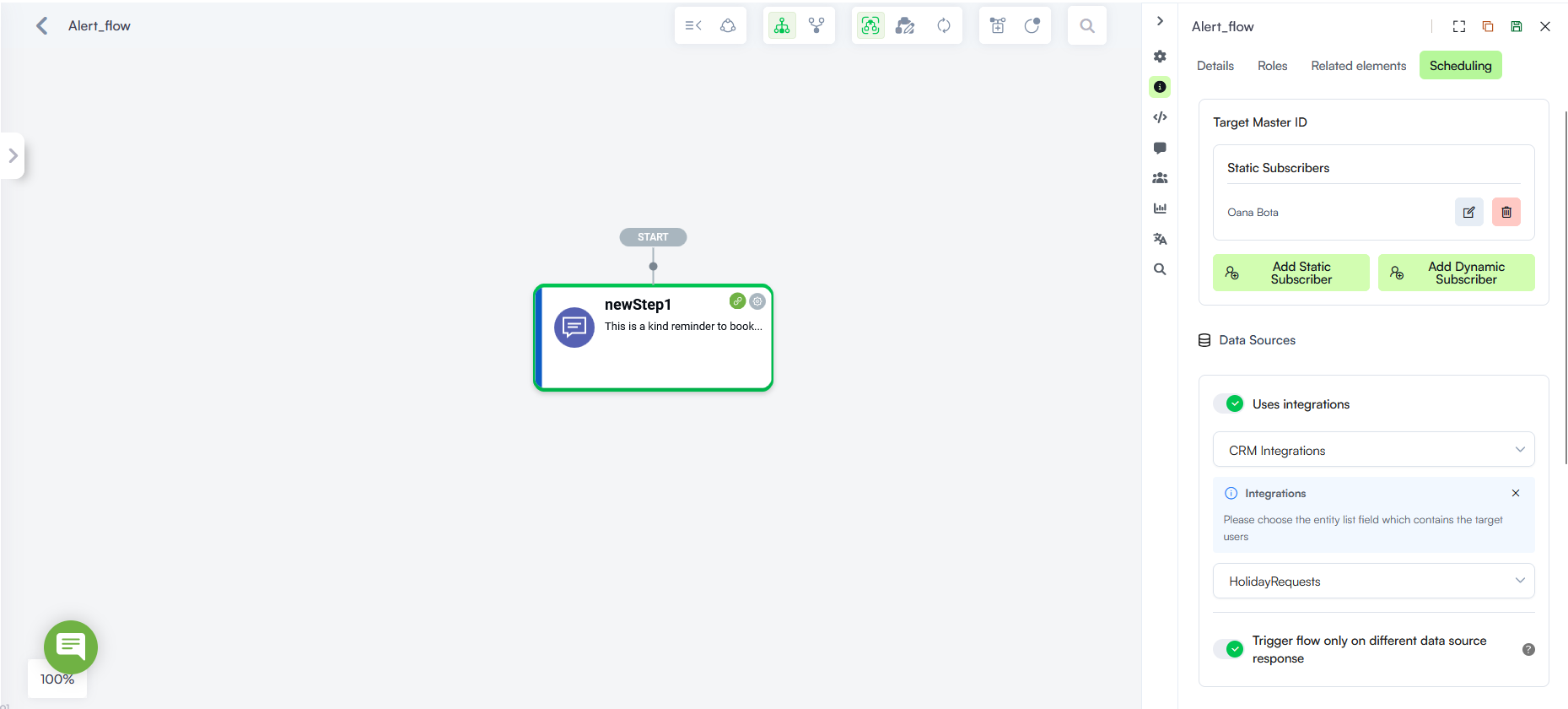

1. Click on the Subscribers section.
2. Click the Add Static Subscriber button.
3. Select the desired authenticated user(s) (users who have chatted with the bot at least once) from the list and click the Save icon displayed inline.



4. What you do next depends on your alert use case:
• To send a simple message to selected users, skip Uses integrations.
• To alert static users only when a change occurs in a database or third-party tool (e.g., an account balance update), tap Uses integrations under Data sources, select the relevant integration, and enable Trigger flow only on different data source response.



• To alert static users with information from a third-party tool (e.g., their current account balance), tap Uses integrations under Data Sources and select the integration that retrieves the account balance.

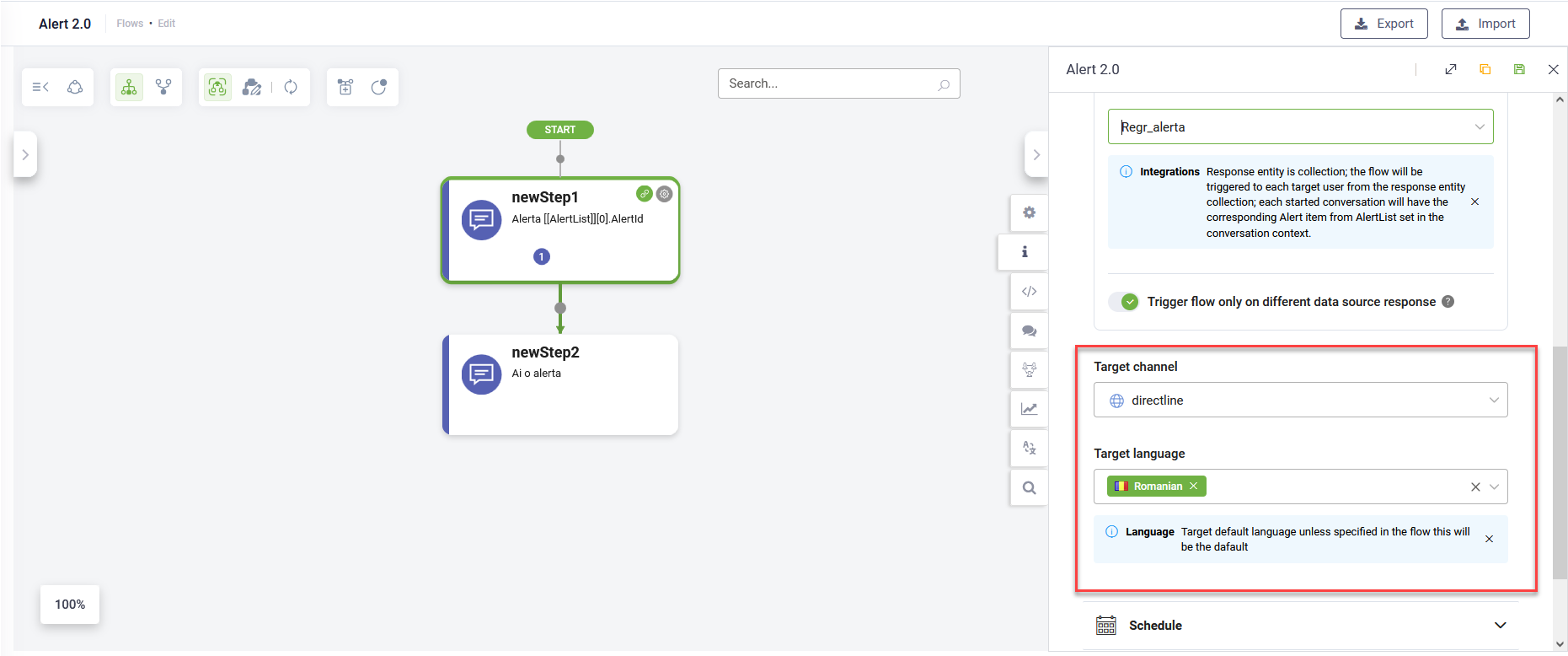

5. Specify the Target channel and Target language in which the flow will be executed.

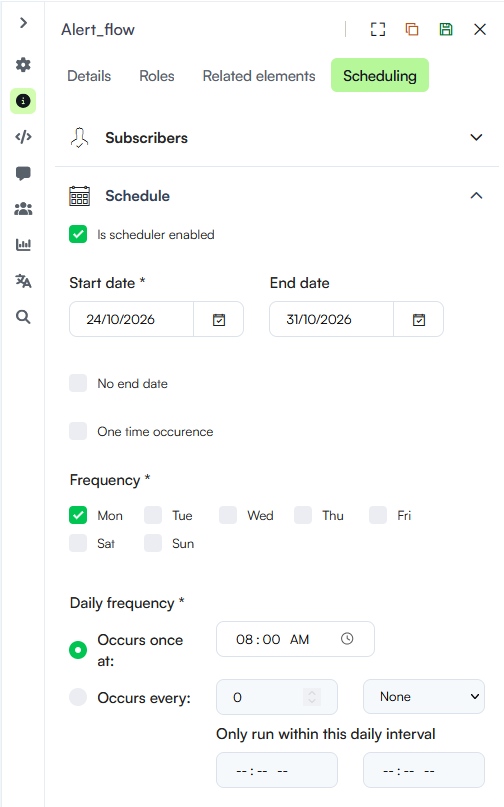

6. Click on the Schedule section and select Is scheduler enabled.
7. Set the schedule based on your requirements.



8. Save the flow.

Sending alerts to dynamic users

To send alerts to dynamic users identified through an external data source, follow these steps:

1. Click on the Subscribers section.
2. Click the Add Dynamic Subscriber button.
3. In the New Dynamic Subscriber field, enter the the entity field that returns the unique identifier for each user (e.g., Email) and save it.

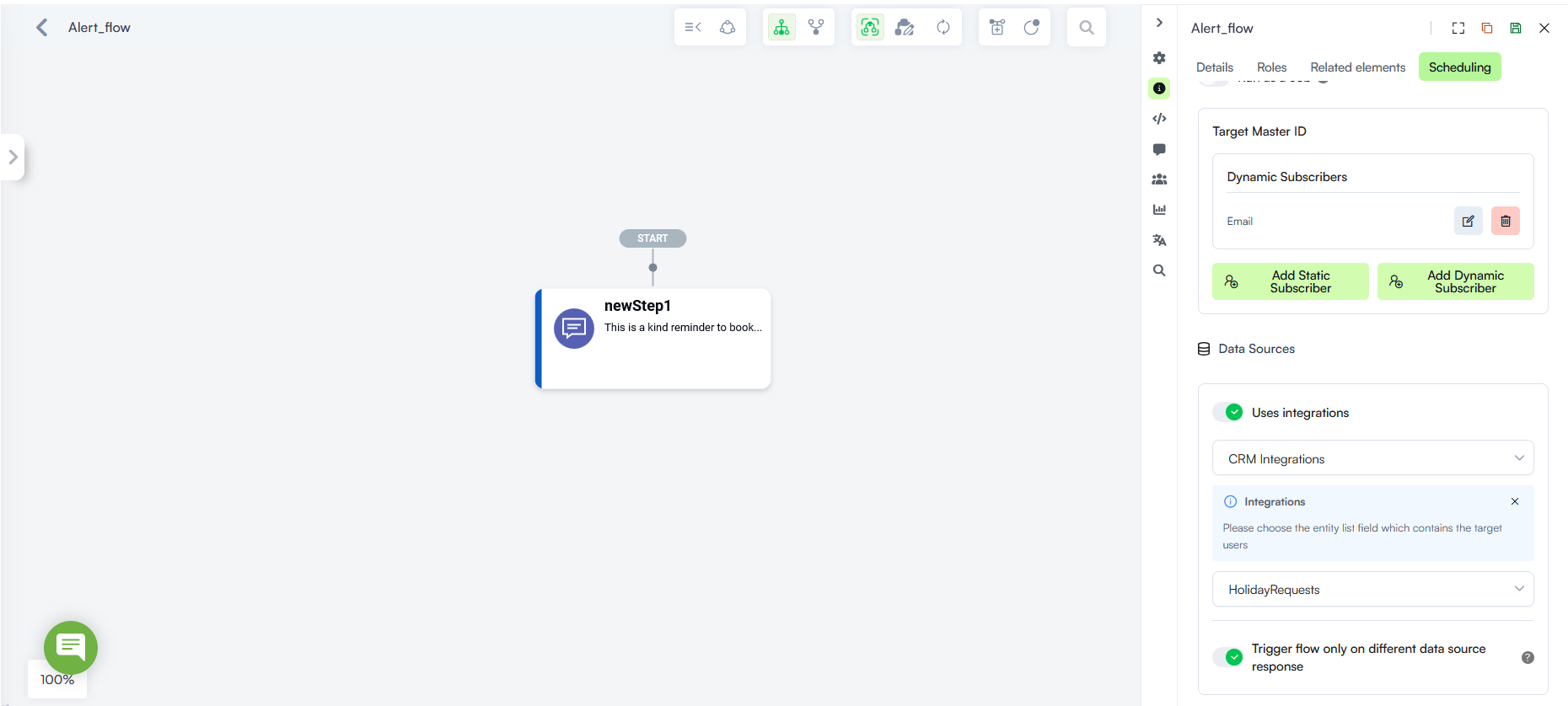

4. Under Data sources, select the integration configured to identify users through your external data source.

If the integration response is not a collection, choose the field containing the list of target users.

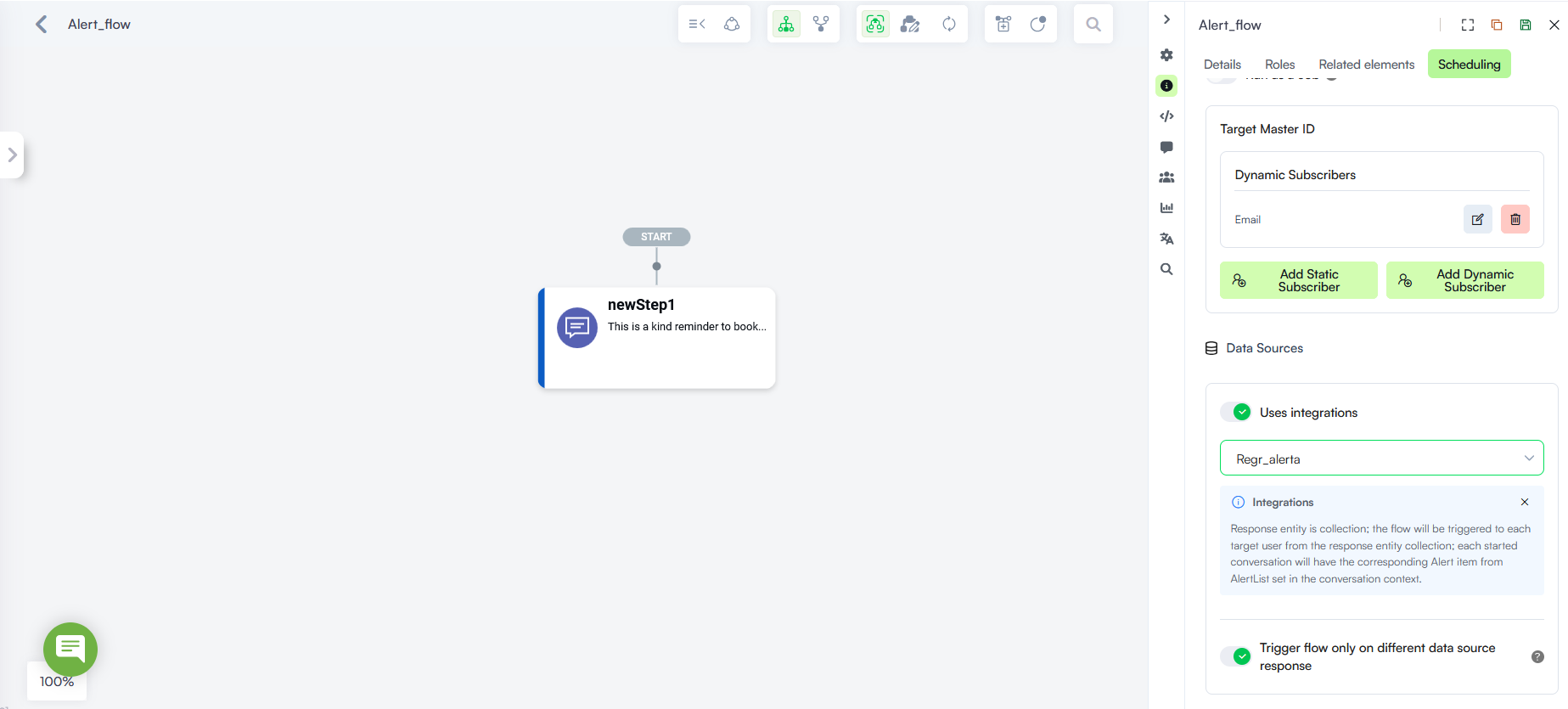

If the integration response is a collection, the flow will be triggered to each target user from the response entity collection.



5. To send alerts only when the data source response changes, select Trigger flow only on different data source response. If this is disabled, alerts will be sent regardless of changes in the data source.
6. Specify the Target channel and Target language in which the flow will be executed.



7. Click on the Schedule section and select Is scheduler enabled.
8. Set the schedule based on your requirements.



9. Save the flow.

Updating the Schedule

To modify an alert schedule:

1. Disable Is scheduler enabled and save the flow to temporarily deactivate the alert.
2. Make the necessary schedule updates.
3. Re-enable Is scheduler enabled and save the flow.

Alert flows runtime considerations

• Execution of Flows: In the new Alerts implementation, the entire flow is executed, unlike earlier versions where only the first step was run.
• Response Entity Context: The response entity transferred to the conversation context for each user depends on the data source configuration. If the response entity is a collection ([[MyEntityList]]), each triggered conversation will have the corresponding item ([[MyEntity]]) from the collection set in the context.
• Setting Variables: Variables are not available in the first step of the flow. The flow initializes without context since it determines the target users only after executing the connector action. Connector actions should have fixed or hardcoded request parameters, or better yet, no request parameters.
